| Power Contactor | |
| AC1 Rating | 40A |
| AC3 Rating | 25A |
| Coil Voltage | 24Vdc |
| Inbuilt Auxiliary Contact | 1NO+1NC |
| Model | D Model |
| No of Pole | 3P |
| Range of Product | TeSys Deca |
| Width | 9.3000 cm |
| Height | 5.0000 cm |
| Depth | 11.3000 cm |
| Weight | 0.5860 kg |
Total Price: $0
Total Items: 0

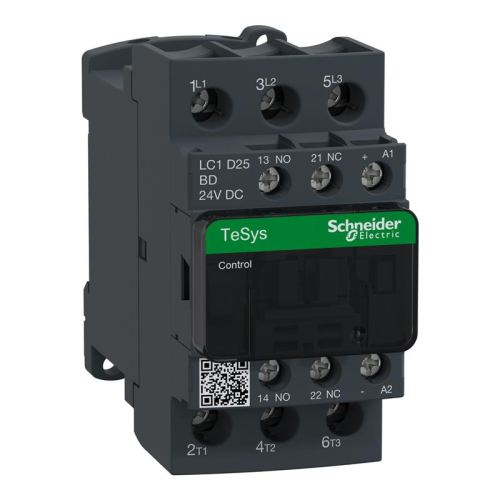

The Schneider Electric TeSys Deca LC1D25BD Contactor is a high-performance, 3-pole (3NO) device engineered for robust motor control applications in demanding industrial environments. Rated for AC-3/AC-3e utilization categories up to 25A at <=440V, this contactor features a reliable 24V DC coil with an integrated transient suppressor module, ensuring stable operation and extended coil life. Its design incorporates 1NO+1NC built-in auxiliary contacts, with the NC contact being mirror certified for enhanced safety. Connection is facilitated by secure screw clamp terminals, making the LC1D25BD an ideal choice for efficient and dependable power switching.
| Product Code | LC1D25BD |
| Brand | Schneider Electric |
| Series | TeSys Deca |
| Poles | 3P (3NO) |
| Utilization Category | AC-3 / AC-3e |
| Rated Operational Current (AC-3/AC-3e) | 25A (<=440V) |
| Motor Power (AC-3/AC-3e) | 11kW @ 400V |
| Coil Voltage | 24V DC |
| Auxiliary Contacts | 1NO + 1NC (NC mirror certified) |
| Terminal Type | Screw Clamp |
| Max Operating Rate | 3600 cycles/hour |
| Ambient Air Temperature for Operation | -25 to 60°C |
| Width | 45mm |
| Mounting | DIN-rail or Screw Fixing |
| Certifications | IEC, UL, CSA, CCC, EAC, Marine |
The Schneider LC1D25BD Power Contactor provides reliable switching for motors, heating loads, lighting systems, and industrial automation. Key features include high electrical durability, AC3/AC4 duty ratings, auxiliary contact options, coil voltage variants, compatibility with overload relays, and compact modular construction for easy panel integration.
The Schneider LC1D25BD Power Contactor supports multiple coil voltage options such as 24V AC/DC, 48V, 110V, 230V, and more, depending on the specific partcode. These options allow flexible use in industrial control panels, PLC-controlled systems, and automation machinery.
The Schneider LC1D25BD is rated for AC3 and AC4 duty categories, which define its ability to switch motors under load. AC3 ratings are ideal for standard motor starting, while AC4 supports plugging, inching, and reversing duties.
The Schneider LC1D25BD Power Contactor supports DIN rail or panel mounting and is designed for easy wiring with EverLink or screw terminals. Its modular design allows direct mounting with Schneider overload relays for motor starter combinations.
The Schneider LC1D25BD is widely used in motor starters, HVAC systems, conveyors, cranes, compressors, material handling, lighting control, and industrial automation panels due to its durability and switching reliability.
Schneider Power Contactor prices vary based on model, coil voltage, and stock availability. ElectriHub provides competitive pricing with guaranteed original Schneider products. Contact the ElectriHub sales team or request a quote for the latest price.
The technical datasheet of Schneider Power Contactors includes AC3/AC4 ratings, electrical life, coil voltage details, auxiliary contacts, terminal tightening torque, insulation voltage, operating temperature, and installation diagrams. ElectriHub can provide the official PDF on request.
Every Schneider LC1D25BD Power Contactor purchased from Electrihub is 100% genuine, brand new, and supplied in original sealed packaging — ensuring top performance and reliability. We source all products from trusted Schneider supply channels, so you can buy with complete confidence. Electrihub offers competitive pricing, fast delivery, and expert support to help you select the right Power Contactor for your application. Whether for industrial automation, electrical panels, or control systems, you can rely on Electrihub for authentic Schneider products that deliver consistent quality and safety.
LC1D25BD - Contactor, TeSys Deca, 3P(3NO), AC-3/3e, <=440V, 25A, 24V DC coil, screw clamp terminals - Schneider Electric
